Sound Scanner P50

The Sound Scanner P50 acoustic camera is designed to locate medium and high frequency sound sources. Thanks to its size with a measuring diameter of 50 cm, the camera can be easily used in small spaces. With the increased rotational speed of the camera's measuring element, it also enables accurate measurements of moving objects..

SYSTEM

Sound Scanner is a new type of acoustic camera created by the Austrian company Seven Bel. The innovative system consists of the following elements:

  • sensor unit
  • mobile device
  • software
  • cloud infrastructure
  • tripod

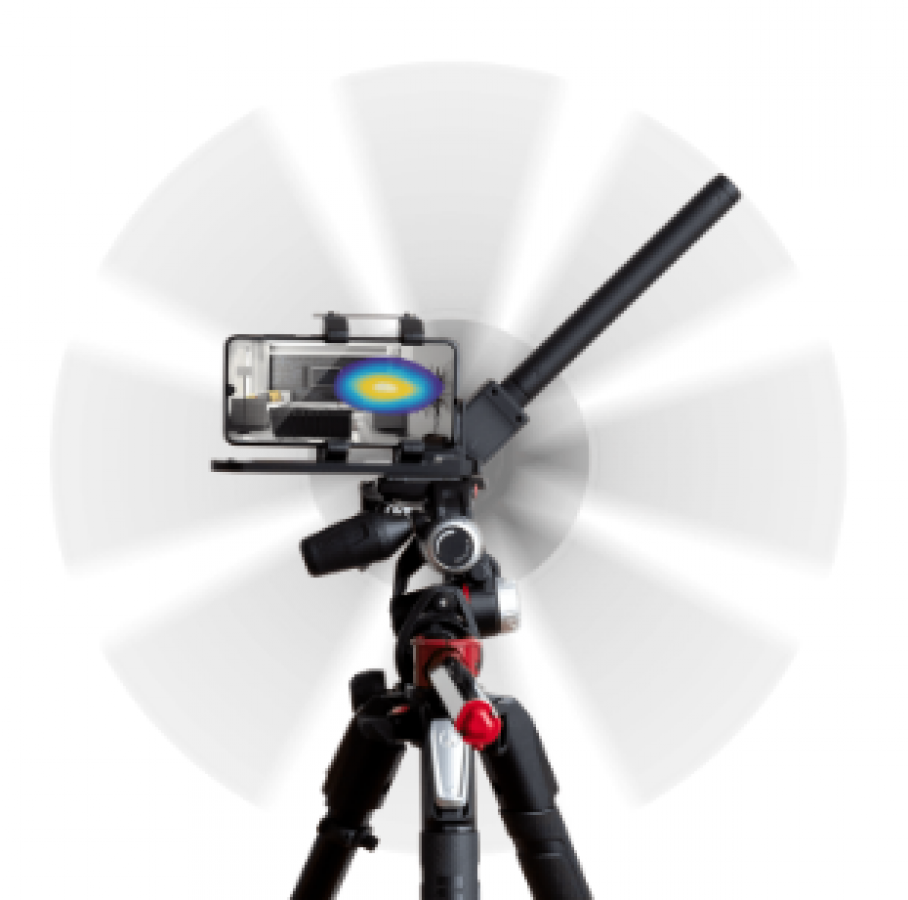

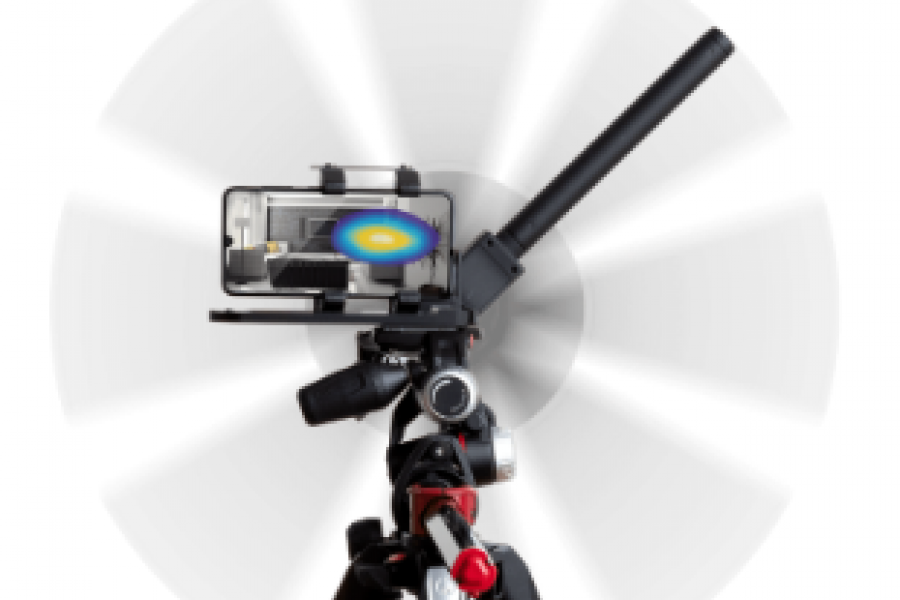

The sensor is mounted on the tripod and set into a rotating motion during measurement. The sensor design, comprising high-quality materials such as carbon, ceramic and aluminum, is robust and operational only with a few quick and easy moves. The sensor is lightweight and compact, and can therefore be taken along for any situation.

EFFECTIVE SOUND IMAGING

Data processing works as fast as the setup. After each measurement, the mobile app transmits the collected data to our high-performance servers. Within seconds you receive acoustic images in superior image quality. Benefit from a massively simplified workflow for measuring and analyzing your sound events and share the results with your colleagues, partners or clients in the form of automatically generated reports.

ADVANTAGES COMPARED TO CONVENTIONAL ACOUSTIC CAMERAS

  • high-quality measurements
  • quick setup
  • exceptional mobility
  • superior price-performance ratio
  • simple operation

With the patented innovation of a moving sensor Sound Scanners are able to simulate up to 480 microphone positions on a circular area while using only five built-in microphones. Comparable acoustic cameras are normally equipped with about 100 microphones. This advantage has significant impact on the measurement quality. The unique mobility and handling and high-quality measurement results make the Sound Scanner P50 a modern high-performance measurement device that can be used and transported easily. No Laptop, power adapter or data recorder needed – more space for other things.

SPECIFICATIONS

SENSOR

Diameter of scan area 50 cm
Weight (excl. sensor mount and tripod) 500 g
Rotation frequency (min/typ/max) 0,2/2/5 revolutions/second
Number of microphones 5
Battery life (fully charged) 6 hours

ACOUSTIC IMAGE


Frequency range 700 Hz - 10,5 kHz
Spatial resolution at 5 kHz (3 dB dynamic range) 6,7 °
Dynamic range > 13 dB
Computed images per revolution up to 6
Measuring distance > 0,5 m

MICROPHONE


Sample frequency 21,5 kHz
Resolution 24 bit
Frequency range 50 Hz - 20 kHz
Sensitivity tolerance +/- 1 dB
Maximum measurable sound pressure level 117 dB
Absolute maximum sound pressure level 160 dB

ANALYSIS


Audio Real time display of time signal, sound pressure level in dB(A), frequency spectrum and spectrogram
  Stream/Pause mode
  Selection of time/frequency intervals and audio playback of the filtered signal
Acoustic image/video Selection of frequency band
  Playback of filtered audio
  Single frame or time averaged frames
  Video playback
Data management Automated pdf report generation of single acoustic image or timed averaged images including meta data (time, location, notes, etc.), time signal, spectrum and spectrogram


Export and import of measurements in zip format via installed file sharing apps (e.g. Google Drive)


ENVIRONMENTAL CONDITIONS


Operating temperature -10 °C - 60 °C
Relative humidity 45 % - 85 %

MOBILE DEVICE


Operating system Android OS version 10.0 or higher
